OUR EQUIPMENT TO CONNECT
ALL TYPES OF SILOS

With a wide range of equipment, we can connect all types of storage facilities to feed all your temperature and ventilation data back to the Store&Save platform in real time.

All our equipment operates on low-frequency radio networks, ensuring optimal data transmission regardless of your network coverage.

Thermometry: our equipment for real-time monitoring of your temperature data

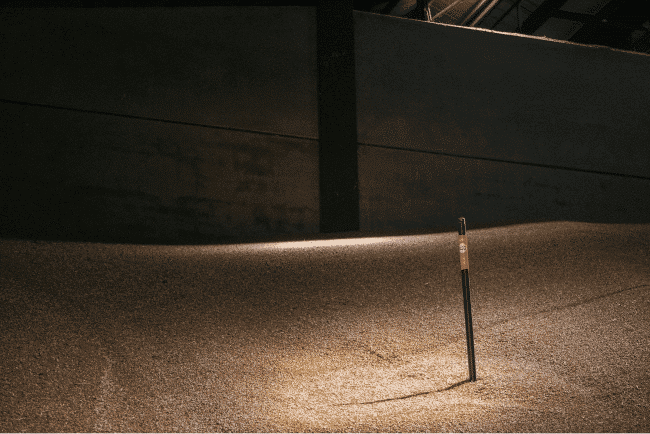

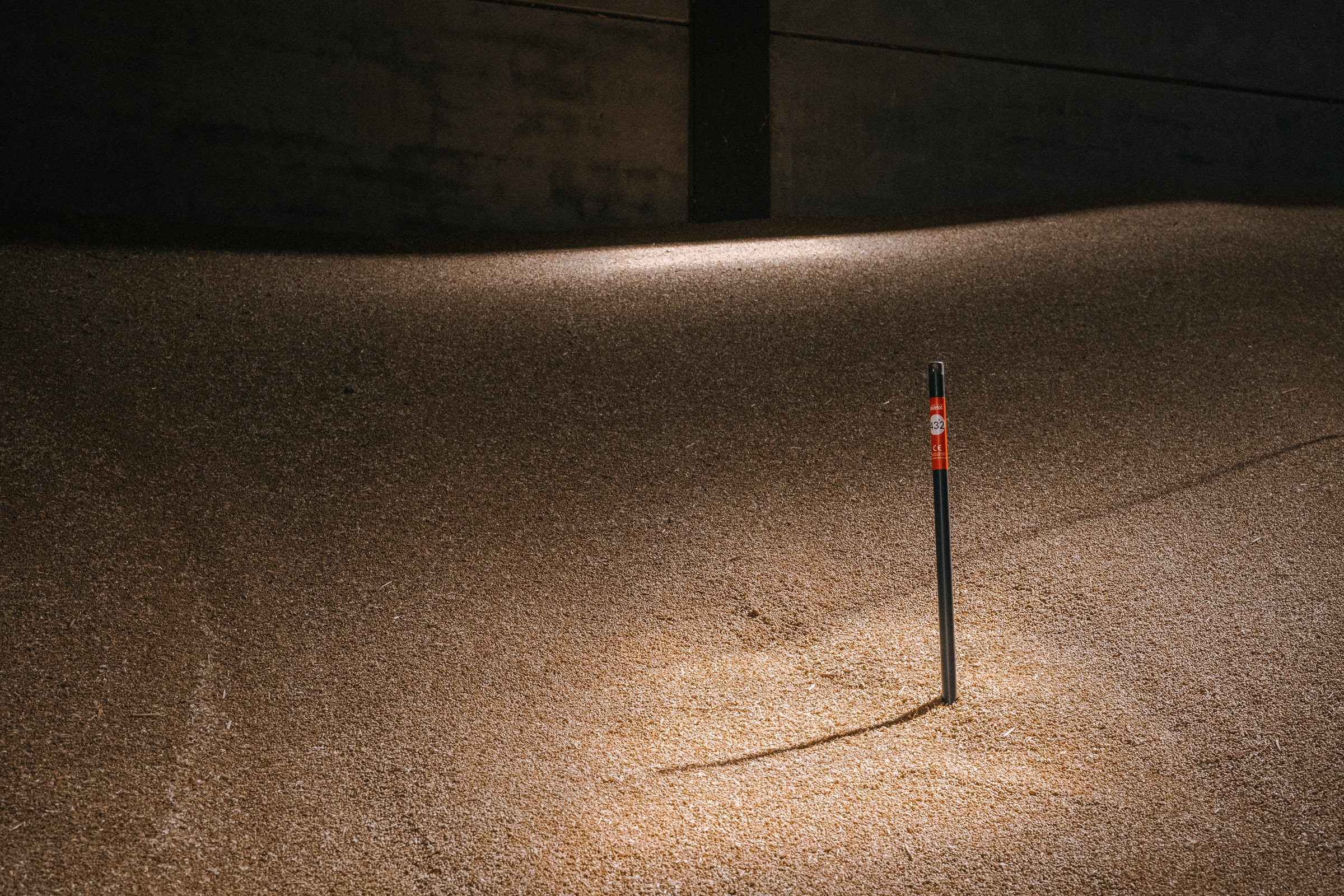

Flat'Javelot: single sensor probe for flat storage

Mobile, flexible and ready to use, this probe is suitable for all flat storage applications. It is planted directly in the pile (recommended 1 probe per 300 t of grain).

Digital thermometer
1 localised measurement point
Accuracy up to 0.25°C
IP68 waterproof and dustproof
ATEX battery
Data transmission via low-frequency radio

Multi-sensor probe for vertical grain storage

Verti'Javelot: multi-sensor probe for vertical cells

Tailor-made, this equipment is suitable for all vertical cells with no height limit.. Sensors positioned along the entire length of the flexible cable guarantee temperature measurement at all levels of the grain. It is installed by us,

The transmitter head (1)

Outdoor installation
Transmitter head of the messages collected via the cable (antenna)
IP66 rated (water and dust proof)
Data transmission via low-frequency radio

The probe (2)

Installation indoors before storage
Thermometric sensors placed at regular intervals (tailor-made)
Certified cable, shielded, ATEX
Maximum length 28m
Accuracy up to 0.5°C
Tailor-made length of 'extension cord'.

Javelot Connect: box for connecting already installed probes

For all existing analogue and digital vertical probes.

You have an existing but unconnected set of sensors. You have an existing but unconnecWe connect to any probe system, whether new (digital) or old (analogue), and digitise the information.ted fleet of sensors.

Transmitter box for messages collected by your analogue probe
Reading: 1 to 14 sensors per probe
24VDC power supply

Centralisation of data collected by other boxes

Virtual Thermo

This system can be connected to other temperature monitoring systems already installed locally. It uses Raspberry to retrieve temperature data that is transmitted to the Javelot infrastructure via the 4G network. It makes the Store&Save platform and its ventilation algorithm accessible to all the sites of a grain storage companies, by adapting to the existing infrastructure.

Ventilation: our equipment for controlling your fans

Venti'Javelot: connection box to turn on your fans remotely

This solution is suitable for fans of all sizes.

Control your ventilation. You can turn it on automatically at the right time, when temperatures are ideal, without being on site. It's possible and compatible with any ventilation system.

Preventive warning system (2G/3G/4G network)

Insect trap: our equipment for early insect detection

Insect trap for early detection of insects in your stock

IoTrap: our connected insect trap

Made of perforated stainless steel and includes a camera, the trap is planted directly in the grain. The insects are photographed daily, inside the tank. The photos are then analysed by Artificial Intelligence, which identifies the photographed insect.

The trap uses a mains-powered relay which communicates by radio-frequency with the traps installed and sends the data to a server so that it can be accessed directly on the Javelot platform.

Insect detection and early identification
USB rechargeable
Easy to install
